Parameter description

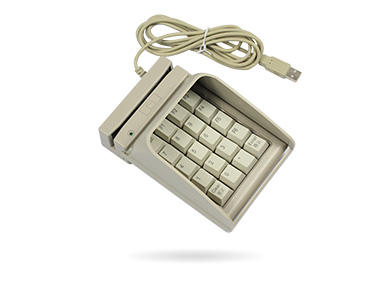

Keyboard layout: 20 keys (0-9 digits, 10 function keys)

Readable track: TK1/TK2/TK3, supporting bi-directional card

Magnetic card standard: magnetic stripe specification compatible with ISO, IBM, DIN and ANSI standards

Card speed: 10 ~ 120cm/s

Card reading ability: 300 OE - 4000 OE

Interface Description: optional PS2 keyboard port, USB2.0 or RS232 serial port.

Technical indicators

Working voltage: +5V

Current consumption: single track 3.5mA dual track 5.2mA three track 7.3mA

Working temperature and humidity: -20 ~ +55 C 30% ~ 90%RH

Storage temperature and humidity: -40 ~ +60 C 20% ~ 95%RH (no condensation).

Magnetic card head life: >50 million times

Antistatic: 15000V

Size: L152 * W102 * H32mm

Magnetic card data format

STX    SS   card data  ES   CR    ETX
0x02   %     DATA    ?  0x0d  0x03  First track
0x02   :     DATA    ?  0x0d  0x03  Second track
0x02   +     DATA    ?  0x0d  0x03  Third track

application area

Major commercial POS systems, smart card companies, membership systems, etc.
