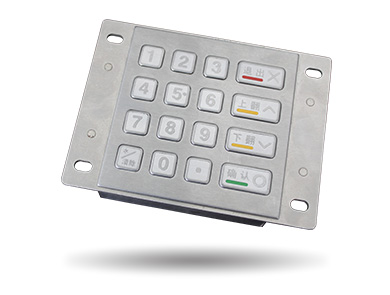

Input keypad

Numeric keys：0~9  Functional keys: Delete, Enter, 3 standby keys

Housing

Professional anti-peep rail

Communication method

RS-232 /USB-HID (Free drive)

Display

Double lines character LCD(16 characters), double lines or 4 lines Chinese character( support GB2312 Chinese character stock) LCD is optional

Buzzer

2-4 sections warning voice, the warning voice content can be customized

Integrated multiple cards function

Support contact type financial IC card reading, financial non-contact type IC card payment operation, stripe card and attach a PSAM card holder

Support card types

Support  CPU card which T=0, T=1

Support ISO14443 Type A, Type B non-contact smart card, eg: Mifare S50, Mifare S70, MF1ICL10, Mifare Pro, Mifare desfire, Mifare ultralight, SLE44R31, SLE6-6cl serials,  AT88RF020

Plug durability

200,000 times

Standards compliance

ISO9564、IBM3624、ANSI X9.8、ANSI X9.9、 ANSI X9.19

Protection

Sensitive data can be saved more than 5 years with power off.

Safety

Secret keys and sensitive data destruction system when seal off (customized )

Coding algorithm

DES and Triple DES, 16 main keys, and 4 working keys in each main key.

Processing capacity

PIN encryption, MAC algorithm, data encryption/decryption (customized)

Mechanical performance

Mechanical Durability
2,000,000 times

Keys press force
   2～5N

Press route
 no less than 1.2mm

Operation temperature and humidity

0℃～+40℃  30%～90%RH

Storage temperature and humidity

-25℃～+55℃ 20%～95%RH（without condensate water）

Air pressure

60～101Kpa

Power dissipation

<1W，DC+5V

Keypad sizes:

150mm*110mm*62mm
